2017 Toyota Highlander Hybrid XLE AWD: An Affordable 3-Row Hybrid [Review]

Toyota-Highlander-Hybrid-LSD
[photo: Arv Voss]
The Toyota Highlander pioneered the midsize crossover SUV category 16 years ago, getting a head start on becoming the class benchmark. The third-generation model, now entering its fourth year, provides room for up to eight, a choice of three powertrains and four model grades, all adding up to an ideal family vehicle.

WHAT’S NEW

The Toyota Highlander Mid-size SUV entered its third generation with the 2014 model lineup which consisted of a new grade strategy featuring four well equipped trim levels: LE, XLE, Limited and Limited Platinum. LE is FWD only. while all other grades offer both front-wheel and all-wheel drive configurations, and AWD gas versions include Dynamic Torque Control as standard fare. Each grade level provides progressively more feature content.

My 2017 Toyota Highlander Hybrid tester came in XLE trim and AWD with a base sticker of $41,330 and a final total of $44,680 after factoring in options plus the Delivery processing and Handling fee.

COMFORT AND CONVENIENCE

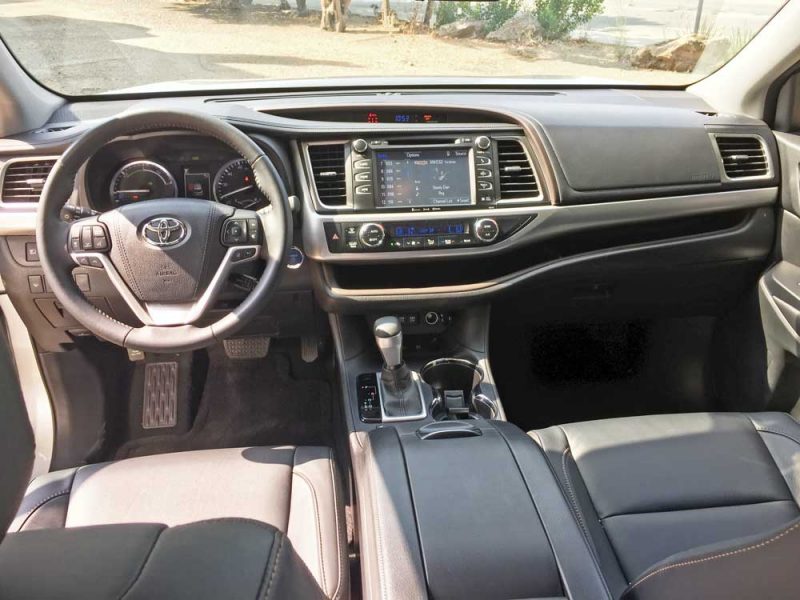

The 2017 Toyota Highlander Hybrid benefits from a premium interior design with advanced technological features, offering spaciousness for up to eight people, with an extensive array of standard comfort, convenience and technology features and equipment. Premium materials are utilized delivering an upscale ambience, with most models featuring standard contrast seat stitching. All Highlanders come equipped with a soft-touch instrument panel; and silver-painted, satin, and chrome-plated accents thoughtfully placed throughout the interior.

Premium fabrics, available smooth and perforated leather trim seats, leather wrapped steering wheel and shift knob add to Highlander’s upscale interior. The adoption of a high quality knit roof lining and available second-row sunshades also contribute to Highlander’s refinement and comfort.

A new roll-top center console provides a comfortable armrest, or when fully opened is large enough to hold a large handbag. All Highlanders feature a newly designed LCD in-meter-cluster Multi-Information Display available in 3.5-inch black & white or 4.2-inch color display. Available ambient lighting around the front dash makes for a relaxing environment.

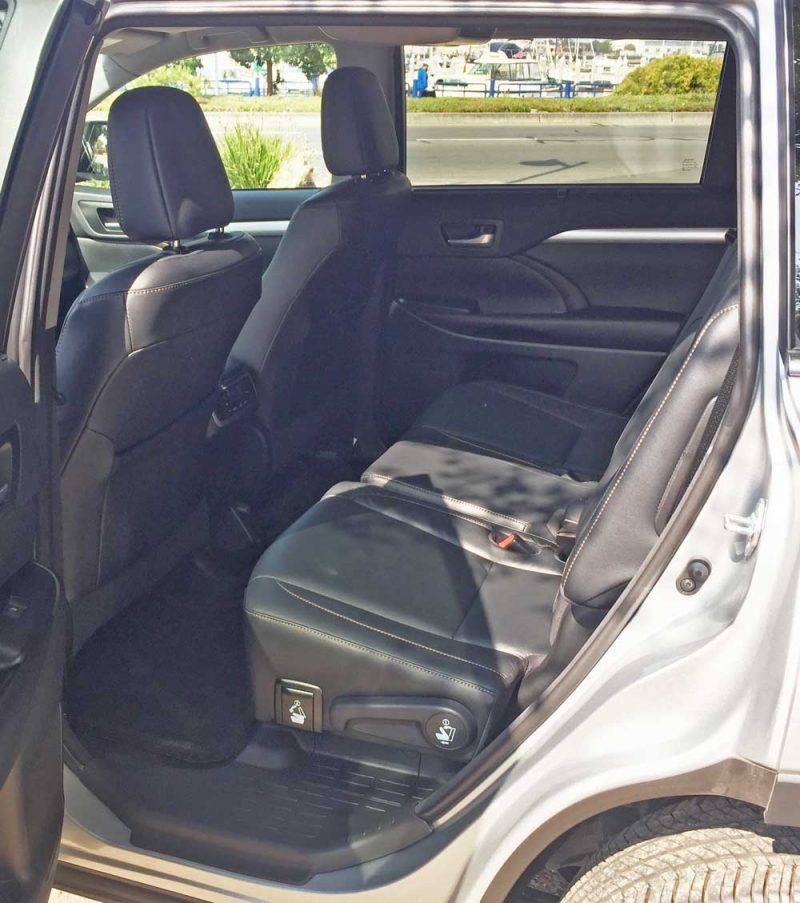

The 60/40 second row offers bench seating for three passengers or two captain’s seats that feature a collapsible side tray with cup holders for added convenience. Entry into the third-row is made easier with the addition of a one-step second-row sliding seat function on both driver and passenger sides that provides nearly three inches of space for easier third-row ingress and egress. The third-row has a standard recline function to enhance comfort for up to three passengers. Like the second-row bench, the third-row will also be 60/40 split for added passenger and storage flexibility and convenience. Rear cargo space behind the third-row was increased last year by 34 percent for added storage capability.

The 2017 Toyota Highlander Hybrid represents a considerable improvement over its predecessors. Everything about it is improved from comfort levels to performance and operating efficiency. The Highlander Hybrid is highly efficient and the Hybrid Synergy Drive system operates seamlessly.

It is truly accommodating for the entire family with seating capability for up to eight, with gear. Rear seat entertainment is available to keep kids and grandkids busy during travel, and an in-dash shelf with a pass through to USB and 12V plug-ins allows for easy cable management. The center console will hold a woman’s large purse or 58 juice boxes. Second and third row air vents are provided with available three-zone climate control. Upscale models come with heated and ventilated front seats, with an available heated steering wheel and heated second row seats. A panoramic moonroof is also available.

The Highlander comes with a Backup Camera and Toyota’s Entune audio systems. Upscale models offer advanced safety technologies such as Blind Spot Monitoring with Cross Traffic Alert, Rear Parking Assist Sonar, and an available Driver Technology Package includes a Pre-Collision System with Dynamic Radar Cruise Control, Lane Departure Alert with Automatic High Beam Headlights and Safety Connect.

Toyota-Highlander-Hybrid-LSR
[photo: Arv Voss]

PERFORMANCE

All Toyota Highlander Hybrid grades feature a 3.5-liter V6 engine and new electronically controlled automatic transmission that offers selectable manual sequential shifting.

The 3.5-liter DOHC, 24-valve V-6 with dual VVT-I delivers 231 horsepower and 215 pound feet of torque. The Hybrid System is coupled to a new, electronically controlled automatic with intelligence in three variants depending on the engine and drive configuration. The Hybrid features a Continuously Variable Transmission (CVT) with a planetary gear unit for gear reduction and power splitting; electronic all-wheel drive control system. AWD-i models are equipped with front and rear electric drive motors..

The Hybrid System nets 280 horsepower (209 kW) with three permanent magnet Motor Generators – 650V max voltage. Max output MG2=167 hp (123 kW) / 247 lb. ft torque / MG3= 68 hp (50 kW) / 103 ft-lb. torque. Sealed nickel metal hydride battery pack with 288V nominal voltage and 45 kW Max power output. The System yields an impressive EPA fuel rating of 27 mpg city/28mpg highway/28 mpg combined, best in class for a three row mid-size SUV. Towing capacity is 3,500 pounds.

Most of all, this latest iteration Highlander handles spirited driving maneuvers deftly. It’s not a sports car mind you, but it serves up surprising stability on the road, handling with an agile, on-center steering feel, while delivering a most comfortable ride quality. In terms of its performance capability, with a full complement of 8 occupants, on a steep uphill grade, the 3.5-liter V6 is up to the task.

TFLCAR’s TAKE: Considering the wide grade range in terms of equipment and feature content, the 2017 Toyota Highlander Hybrid presents itself as an ideal mid-size, three-row SUV. providing several choices for a variety of consumers. It comes with a choice of attractive exterior colors and a basic limited warranty coverage: a 3-year/36,000-mile Comprehensive, a 5-year/60,000-mile Powertrain, a 5-year/unlimited-mileage Corrosion Perforation, and an 8-year/100,000-mile Hybrid-related Component Coverage. The Highlander also comes standard with Toyota Care, a complimentary plan covering normal factory-scheduled maintenance and 24-hour roadside assistance for two years or 25,000 miles, whichever comes first.

All Highlanders are assembled at the Toyota Motor Manufacturing facility in Princeton, Indiana and exported to a dozen other nations.

SPECIFICATIONS: 2017 Toyota Highlander Hybrid XLE AWD

  • Base Price: $41,330, price as Tested: $44,080
  • Engine Type and Size: 3.5-liter DOHC, 24-valve V-6 with dual VVT-I and electronic fuel injection. Hybrid System net 280 horsepower (209 kW) with three permanent magnet Motor Generators – MG1-650V max voltage. Max output MG2=167 hp (123 kW) / 247 lb. ft torque / MG3= 68 hp (50 kW) / 103 ft-lb. torque. Sealed nickel metal hydride battery pack with 288V nominal voltage and 45 kW Max power output.
  • Horsepower (bhp): 231 @ 5,800 rpm
  • Torque (ft./ lbs.): 215 @ 4,800 rpm
  • Transmission: Electronically controlled continuously variable transmission (CVT) with planetary gear unit for gear reduction and power splitting; electronic all-wheel drive control system.
  • Drive Train: Transversely mounted front engine / AWD with front and rear drive electric motors
  • Suspension: Front – Independent MacPherson Strut, coil springs and low friction Shock absorbers. Rear – Double wishbone with stabilizer bar and shock absorbers.
  • Brakes: Power-assisted, electronically controlled four-wheel discs (vented front) with ABS, EBD, VDIM and regenerative control
  • Tires: Bridgestone Dueler H/L 245/60 R18 – 104T M&S mounted on alloy wheels
  • Wheelbase: 109.8 inches
  • Length Overall: 192.5 inches
  • Width: 75.8 inches
  • Height: 70.1 inches w/ shark-fin antenna (68.1” without)
  • Approach Angle: 18 degrees
  • Departure Angle: 23.1 degrees
  • Ground Clearance: 8.0 inches
  • Curb Weight: 4,910 lbs.
  • Turning Circle: 38.7 ft.
  • Fuel Capacity: 17.2 gallons
  • EPA Mileage Estimates: 29 mpg city / 27 mpg highway
  • Drag Coefficient: 0.33
